Importing Customer Locations as Geofences

1Тема от fleetlogik

28/09/2019 22:26:16Importing Customer Locations as Geofences

fleetlogik
Gurtam Partner
Неактивен

Откуда: Chicago IL USA
Зарегистрирован: 28/10/2014
Сообщений: 61
Карма: 12

Тема: Importing Customer Locations as Geofences

Gurtam Community-
Wondering if anyone has an easy solution for creating KML files from excel data. Customer has used a previous tracking platform that had a address based template that would load radius geofences as customer zones. They use this feature to load the weeks planned jobs and then monitor geofence activity. They would manually delete the zones after the jobs are complete. There are a few subscription based KML tools, but the steps needed to manage and then import into Wialon is a bit complicated for average user... Any suggestions appreciated.

Сайт fleetlogik Профиль

2Ответ от hase

30/09/2019 10:57:49Importing Customer Locations as Geofences

hase
Wialon fan club
Неактивен

Зарегистрирован: 25/08/2014
Сообщений: 59
Карма: 64

Re: Importing Customer Locations as Geofences

fleetlogik

The easiest way to convert KML from excel data is through Google Maps. It allows you to import data in different formats, including csv and xlsx, and export it into kml - https://support.google.com/mymaps/answer/3024836 Source excel data should contain columns with lattitude and longtitude.

Sergey Haritonov, Gurtam Maps Specialist

Профиль

3Ответ от Fernando Brochetto

08/07/2020 22:06:48Importing Customer Locations as Geofences

(08/07/2020 22:08:19 отредактировано Fernando Brochetto)

Fernando Brochetto
Gurtam Partner
Неактивен

Откуда: Brasil - RS
Зарегистрирован: 28/06/2019
Сообщений: 375
Продукты: Wialon Hosting
Карма: 89

Re: Importing Customer Locations as Geofences

Hello,
I needed to do this process today and I found a bit difficult, so I created some steps that can help other partners to do the same:

Create the locations inside Google Earth, export and import the archive in Wialon:
01) The first step is to have all the locations in excel with the titles:

Location | Latitude | Longitude

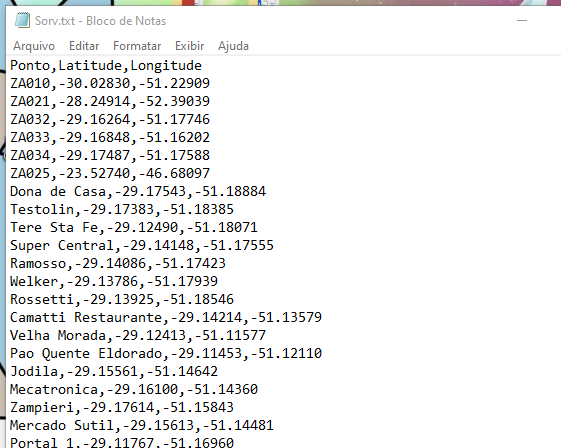

02) Use the formule: =CONCATENAR(A1;",";B1;",";C1) (CONCATENATE in english) in D1 and copy all the column D to a document .txt;

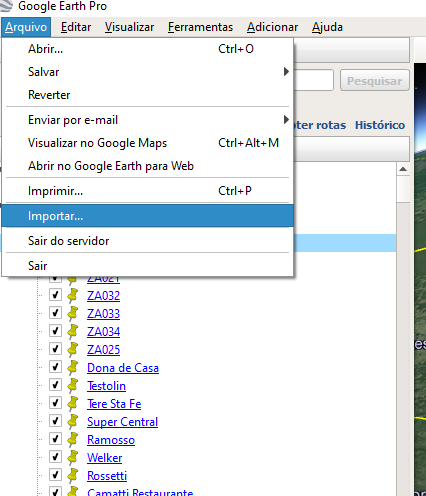

03) Import the document .txt inside Google Earth;

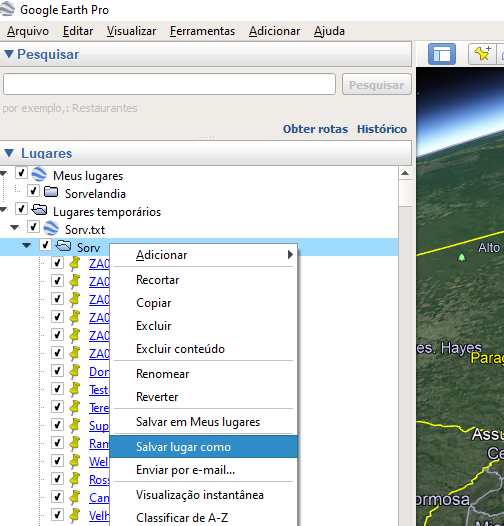

04) Export the locations in Google Earth to .kml;

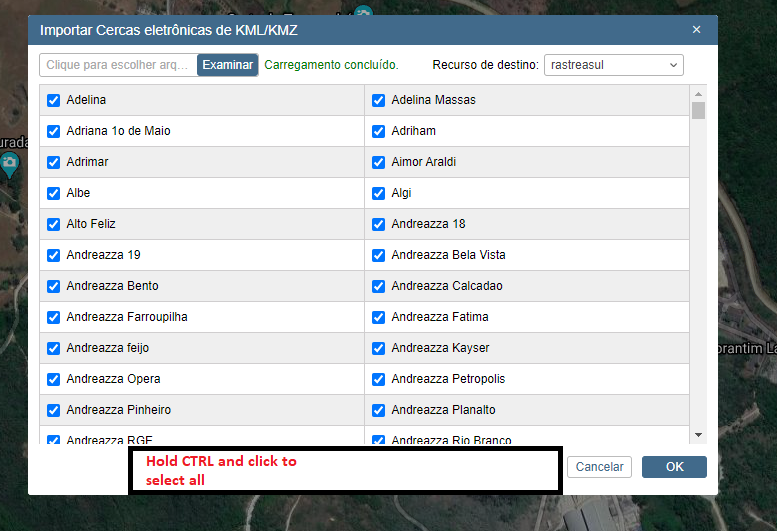

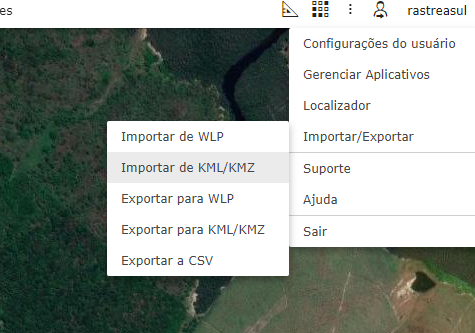

05) Import the .kml file inside Wialon.

In case you need to change the radius:
01) Export geofences to .wlp;

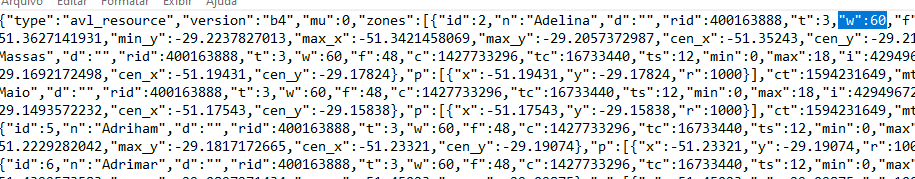

02) Use notepad, in edit, replace: "w":1000, to: "w":radius;

03) Import geofences again.

Fernando Brochetto
Technical Support, Rastreasul
