Fuel Sensor -Trucks keep having fuel theft and fillings-pls help

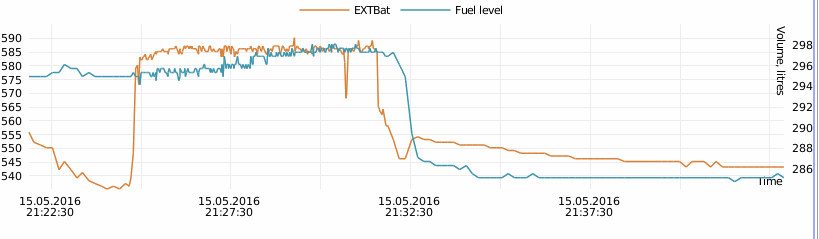

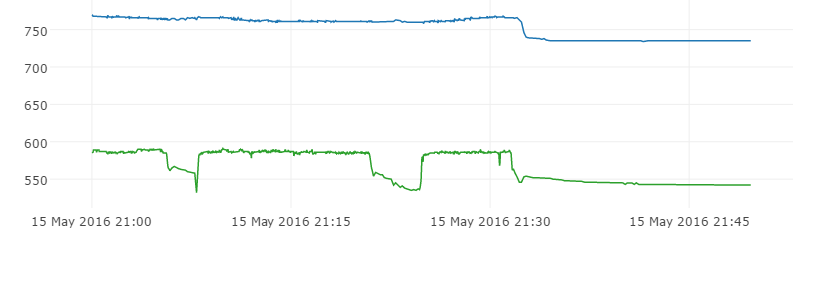

for me it looks like a technical problem in the fuel level sensor... it should not drop that much and than suddenly jump up again.

did you ask the manufactor of the fuel level sensor about this?

also strange for me that you have the same behaviour in all of your trucks.

Wolf.

Analog sensor are affected from several things including, on board voltage, cable routing,  missmatch with the locator, the first thing is obviously ask to MFG, it can be fixed may be trough configuration software, also add an in line voltage regulator or some kind of filter ONLY to know that there is no issues by the feeding voltage, i can help if you give more details.

Dear All,

Thanks for your support.

Yes you are right it was a problem with the way we plugged the device. We had not used the same source for Power for both the gps device and the fuel sensor.

However now we have another problem which is very frustrating. We are using Chinese FLS from a very big company which we have visited.

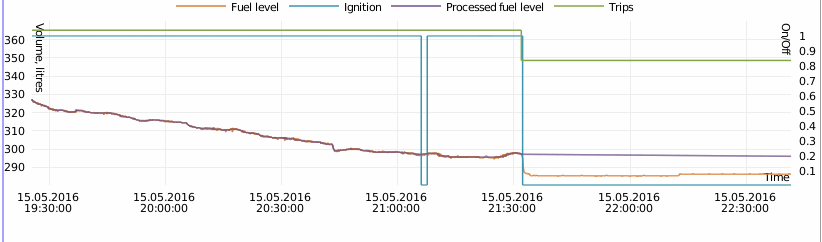

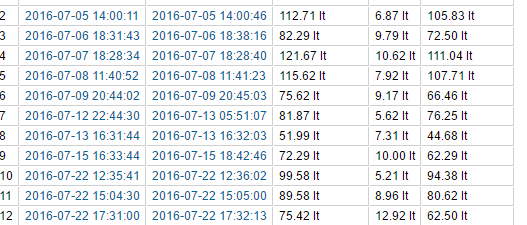

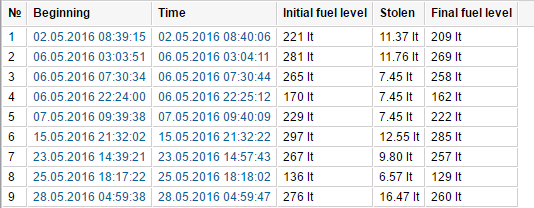

The problem is that we are getting fake thefts and fillings just when the vehical stops for a few seconds( 30seconds or so) in traffic. Most of the fuel thefts and fillings are around 7 to 10 liters and take place within just 30 to 40 sec. This seems to be not possible as when you see the graphs you can see the Vehical engine was on and had just stopped for 30 sec or so. What kind of setting can we apply to avoid this.

The problem is the the sensor by default filters the data for over 120 sec by default.

I am very confused on how to solve this problem .. please can someone help

thanks

possible failures are; bad installation/calibration, some cheap fls loss the resolution after months of installlation, if the fls has filters use it, check again voltage or better you can make a simple regulator 9-10v to feed the sensor and discard any variation on the readouts.

If you need help with this we have possibly one of the best Analog Fuel Solutions and fully Integrated in Wialon let me know if you are interested in info.
