Video monitoring in Wialon

i think minimap would be better: in real live you watch real time video only if you want to check a special driver / case etc.
No need to watch "many many multiple streams and superduper organize them"...

(just my opinion).

Wolf.

Yeah, Minimap would be great here.

Thanks for your feedback! They are really helpful

Minimap looks better

Minimap is definitely the way to go.

As you are integrating more video input devices, it would be a good idea to do the following as well:

1. Enhance Wiatag so that it can send video on demand. This will allow any ruggedized Android  device with front/back cameras to be used as a Dashcam

2. Enhance Wialon IPS protocol to include video input/on demand video,  or alternately publish a generic Video Input protocol for Wialon.  This will allow Android/iOS apps that have features such as messaging and other features (not found in Wiatag) to send video to Wialon as well.

Hello Pavel Bushuyeu,

Do you have a list of the device model of each manufacturer that you are integrating?

If Wiatag app is also being modified to have video, here are a list of feature suggestions:

Driver initiated Live Video with option for front/back cameras (with
automatic turn off after 30, 60 , 90 etc. secs ??? to avoid excessive data
charge)

Dispatcher initiated Live Video with option for front/back camera (with
automatic turn off after 30, 60 , 90 etc. secs ??? to avoid excessive data
charge)

A Job that can be set up to request video every X minutes (nice to have)

Ability to forward/email a video clip (nice to have)

Ability to send video (post?) to some external (AWS) archival system –
nice to have

Hi Peter K, hhamedk

there are no current plans to bring video into WiaTag

Pavel there are couple of considerations that need to be looked at when working with video apart from the management of the increase in the data stream.

1. There should be automated uploads of short (30second) video's based on a trigger that would be available in Wialon. The trigger could be user definable. Standard setting would be say 20sec before the event and 10 sec post the event. The event would also trigger the minimap to pop up. The playback of this video clip should also show all of the captured parameters from the device such as speed, accelerometer etc

2. Analysis of video's should not be done in Wialon but in a dedicated application to reduce the server load. However the triggering of the extraction to a local server or a cloud store could be done via a job or notification in Wialon. User needs to make sure that the extracted video is in a format they can directly play, ie AVI, MP4 etc unless they have a player that can work with the video clip directly.

Regards
John

Huabao DV03 device already connected to wialon. We have more than 100 units of Tracker + MDVR running now.

Please add this device

A thorough analysis of user requests, several months of development and testing and we are ready to implement almost any project in the area of video monitoring thanks to the new module in Wialon beta-version.

While working with the map you can quickly switch to video mode. After its activation, you access a work area where video windows are located. Every window presents a separate video player with the options to select a unit and a camera.

After clicking “Video” button in the monitoring panel a mini window pop-ups featuring the first camera stated in Unit Properties.

The size, number, type of displayed cameras along with grid size can be changed in settings available right in the video-mode window.

Nowadays video surveillance in GPS tracking is on the rise which means the functionality of the new module will soon be extended. We want Gurtam analysts and developers to work closely with our community and look forward to your ideas and suggestions about how to advance the module. Together we’ll create the solution subject to your needs.

Tim.Mwandha We plan to  integrate Teltonika MVC300 camera soon.
Integration will be finished in September (approximately).

The list of already integrated devices (with external camera) you can find here:
https://gurtam.com/en/gps-hardware/auto … %5D=camera

Gotyou If both devices send data to server separately -- it's impossible to make 1 unit.

May be, tracking device (like Calamp) can  be connected to MDVR (like Streamax). For example, Calamp sends telematics data to streamax via RS232/485  and  streamax sends data to a server -- it's possible to have 1 unit with video and parameters. It's better to ask manufacturers of the devices.

For example, we know that Calamp can be connected to Servision MDVR. But we've never tested the exactly functions

instantconnectibiza,  thanks for your proposal. We will have in mind it in further development. If it possible we will add such a functionality.

Gotyou, it depends on the device you use. Live stream is not stored in Wialon. And episodes in the past required by the command are stored. Some mdvrs have such options, some don't.

Hi there

Is it possible to add a function to bind a MDVR to a unit? let me explain, when we are talking about MDVRs, most of them don't support advanced functions like CAN data reading or FLS sensors connection. If we want to have such advanced data on one vehicle we have to create 2 unit for each vehicle and it not only cost but also it's not convenient. My idea is that if we want to offer customers video surveillance plus advanced FMS  functions we can create an unit with an advanced device like BCE Blue+ and then bind a MDVR without GPS function to this unit. this way we have all data from BCE plus video files or live streaming from MVDR in same time. What you think?

Any response on my last post under this topic?

teerak

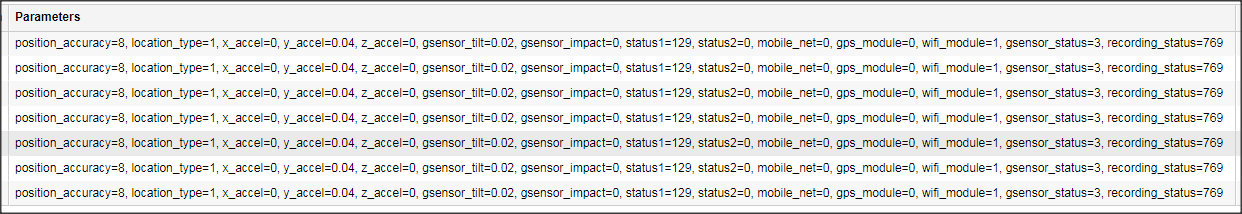

1)  We'll  place parameters' description on our website soon
2) Life stream video recording 1-20s should work. If you ask about downloading video from internal memory, please check Timezone settings (in minutes) in the addtitional properties of device type Hero (a wrench icon near device type)
Please write hw@gurtam.com (including information about your unit id) and we'll check your problem

3)Life video stream (without recording a file) isn't supported and it can't be implemetned in the nearest future

Looking forward to the mini map

Hi yavi,

     Thank you very much for the parameter description and bug fixing.
I tested and the problem still happens. I already wrote an email to HW team.
Another question, What is "BD" stand for in location type?

Best Regards,

Is there any updates about MVC300 camera integration ?

U can use another app https://mobile-spy-apps.com/ mobile recorder on Android.

buenas, para smartwitness no esta prevista la intregacion de videos en vivo, funciona a traves de los comandos asi como esta realizado ahora,
referente a howen si, estamos en el proceso de integracion, siga las noticias

Hello, ellyM.
Unfortunately, current structure doesn't let us change file names.
We have plans to make some changes and to appreciate your request if it is possible.

emphielly, could you send me more details in private message, e.g. username and problematic report name? Not sure if it is an improvement or a bug or just wrong settings.

good day All
please how to configure ignition with howen device on Wialon and Ecodriving? i use Hero-ME41-04

Regards

Some time ago hhamedk asked quite an interesting question:
"Is it possible to add a function to bind a MDVR to a unit? let me explain, when we are talking about MDVRs, most of them don't support advanced functions like CAN data reading or FLS sensors connection...."

This question deserves additional comment.

Yes, it is possible to do it and this is an interesting solution which allows to combine a GPS-tracker with advanced functions and an MDVR with video functions in one unit in Wialon.
In Wialon it will be one unit (a GPS-tracker) with the support of video functions from an MDVR.

Usually we support the following functions for MDVRS in Wialon:
- viewing live video
- downloading video files from the MDVR

Due to the technical peculiarities, now the following MDVRS integrated in Wialon can be bound to a GPS-tracker unit in Wialon:
- "IVG400-N" from SerVision
- "Streamax X3-H0402" from Streamax Technology

Both devices support live video and requesting video files if used as self-sufficient device types in Wialon.
But there are certain limits due to the technical peculiarities of the aforementioned MDVRs if they are bound to a GPS-tracker unit in Wialon.
In such cases "IVG400-N" can be used both for viewing live video and requesting video files.
"Streamax X3-H0402" can be used only for viewing live video.

We should note that now the manufacturers of the MDVRs integrated in Wialon are aware that solutions for fleet management require specific functions and many of these functions are already supported by the integrated MDVRs.

good day All
please how to configure ignition with howen device on Wialon and Ecodriving? i use Hero-ME41-04

About ignition parameter please see the video:
https://gurtam.com/en/gps-hardware/auto … cification (don't pay attention on server ip, it can be different for your video server).
But parameters mask 1023 is correct. After that you can set up ignition sensor in Wialon.
About eco driving -- Howen doesn't transmit accelerometer. You can set up eco driving by GPS parameters only.

Yavi
the video we have from the link does not show how to configure ignition sensor. I would like to know how to use parameters to configure ignition sensor.

thank

Hello guys,
we use ME41-04 Mobile MDVR on my WL last Version.

but we have struggling about the streaming video and reconfiguration.
like, we already to access in some user, but still can't view the video, the show on monitoring it has no video available (it was full access on it)
