GuardMagic TRIM1 Universal trailer identification module

GuardMagic TRIM1
Universal trailer identification controller for mobile application: trailers, semitrailers, fuel trailers, agricultural machines etc.
(support standard LLS communication protocol.

Works as Omnicomm fuel level sensor Transmit module ID in fuel level field.
(it mean that GuardMagic TRIM1 can be connected to any Vehicle module, that support  Omnicom (or similar) fuel level sensor and ID number can/wiil be visiblel in "fuel level field".

GuardMagic TRIM1 is the special device for operation in vehicle/fleet management system and is intended to
identification any towed equipments (trailers, fuel trailers, etc) to main tractor.

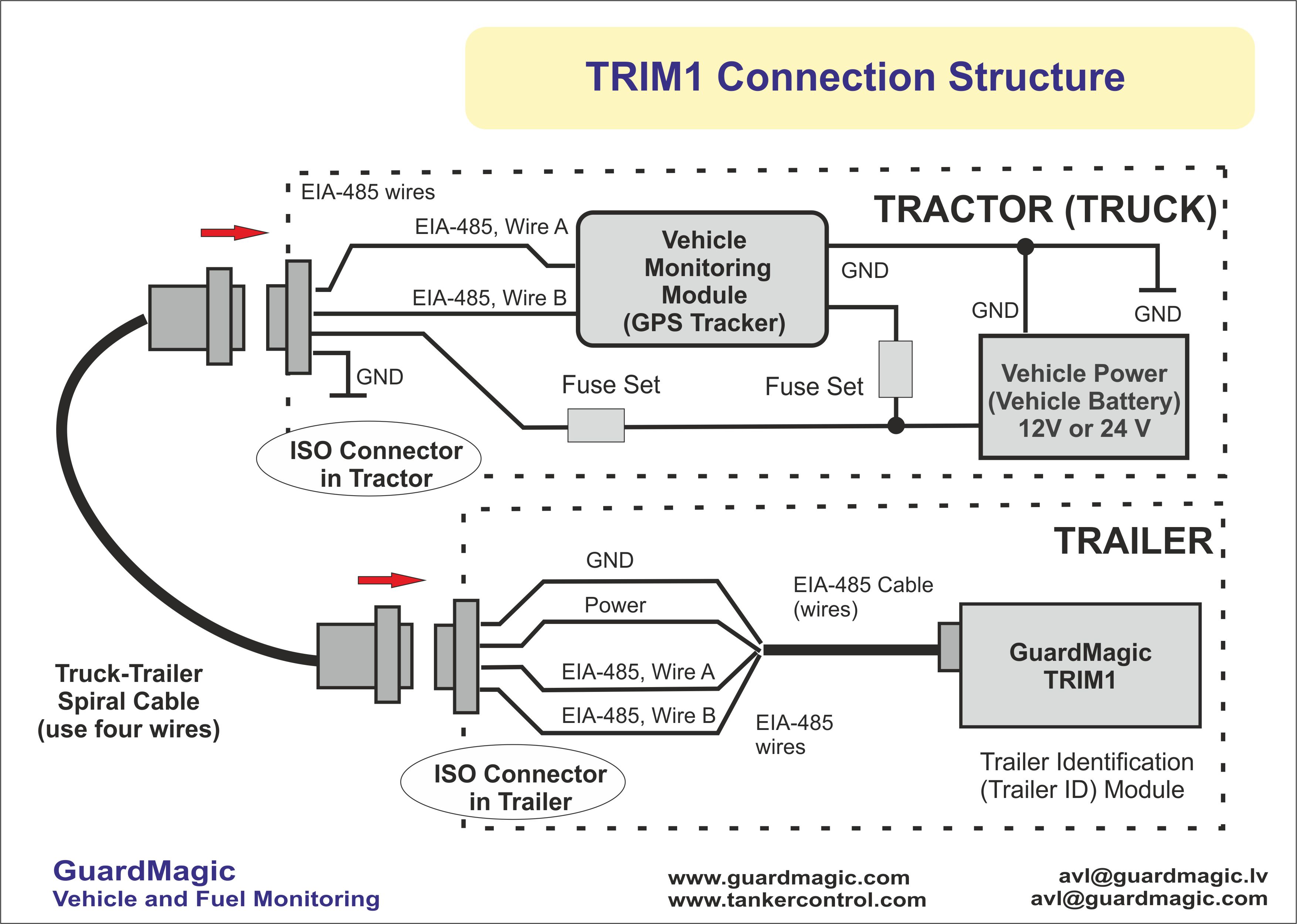

GuardMagic TRIM1 is install in trailer  and wired connected to main module installed in tractor.

GuardMagic TRIM1 has inique factory number (module ID) and transmit this unique ID by wire to main module located in tractor.

GuardMagic TRIM1 allows to check if the correct trailer is coupled to the tractor unit.

GuardMagic TRIM1 allows by very economical way embed trailer monitoring functionality in vehicle monitoring system.

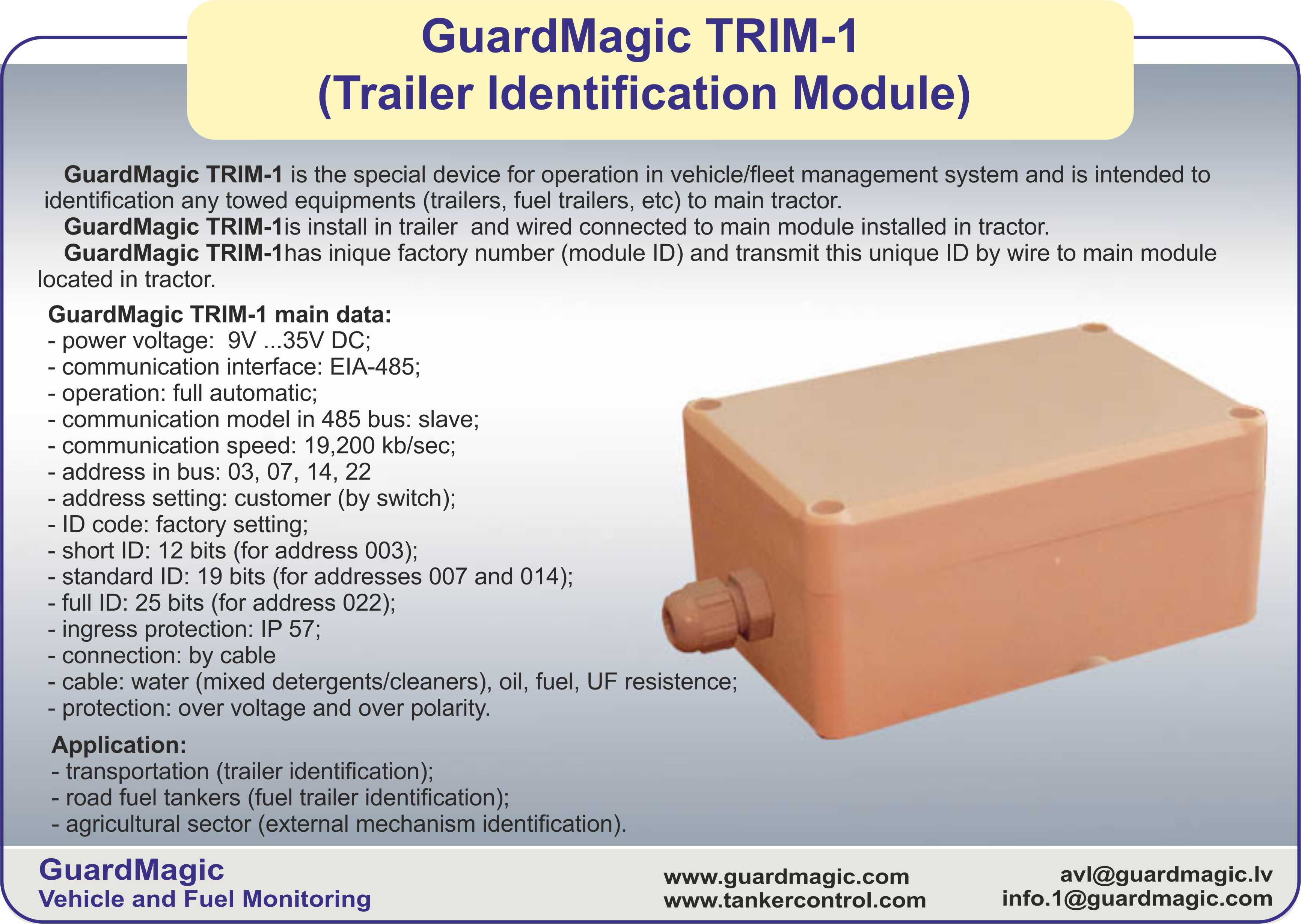

Main data:

- input power voltage (DC) operation:   GND minus, 10V...35V

- communication interface:              EIA-485

- operation:                            Full automatic

- communication model in 485 bus:       Slave

- communication speed:                  19'200 kbit/sec

- serial connection:                    YES

- module ID:                            Factory Setting

- addresses in EIA 485
   (customer selected):                  03, 07, 14, 22, 23

- address setting (customer):           by Internal Switch

Connection:                            by cable

In additional:
  - Protection:                         over voltage and over polarity;
  - Internal LED:                        YES;
  - Support standard LLS communication protocol: YES;
  - One and more trailers
    (module serial connection):                  YES
