Topic: Cloud-based free CAN-bus decoder service
Hi to all!
There are a lot of cheap CAN-USB scanners which produce raw CAN-log files for analysys. Someone is experienced enough to recognize CAN J1939 PGNs in raw format like "FEF2, FECA etc". We can help to make an analysys easier.

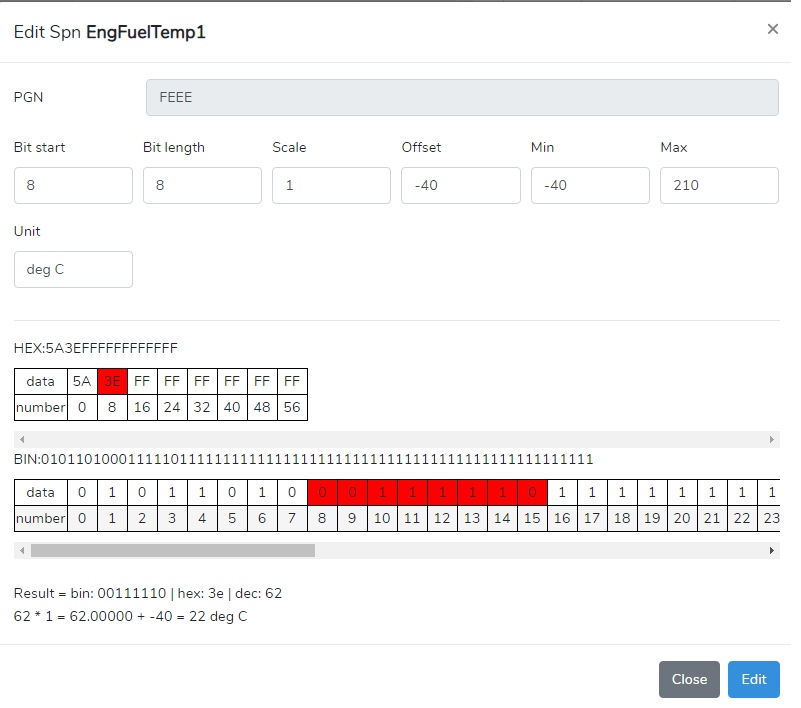

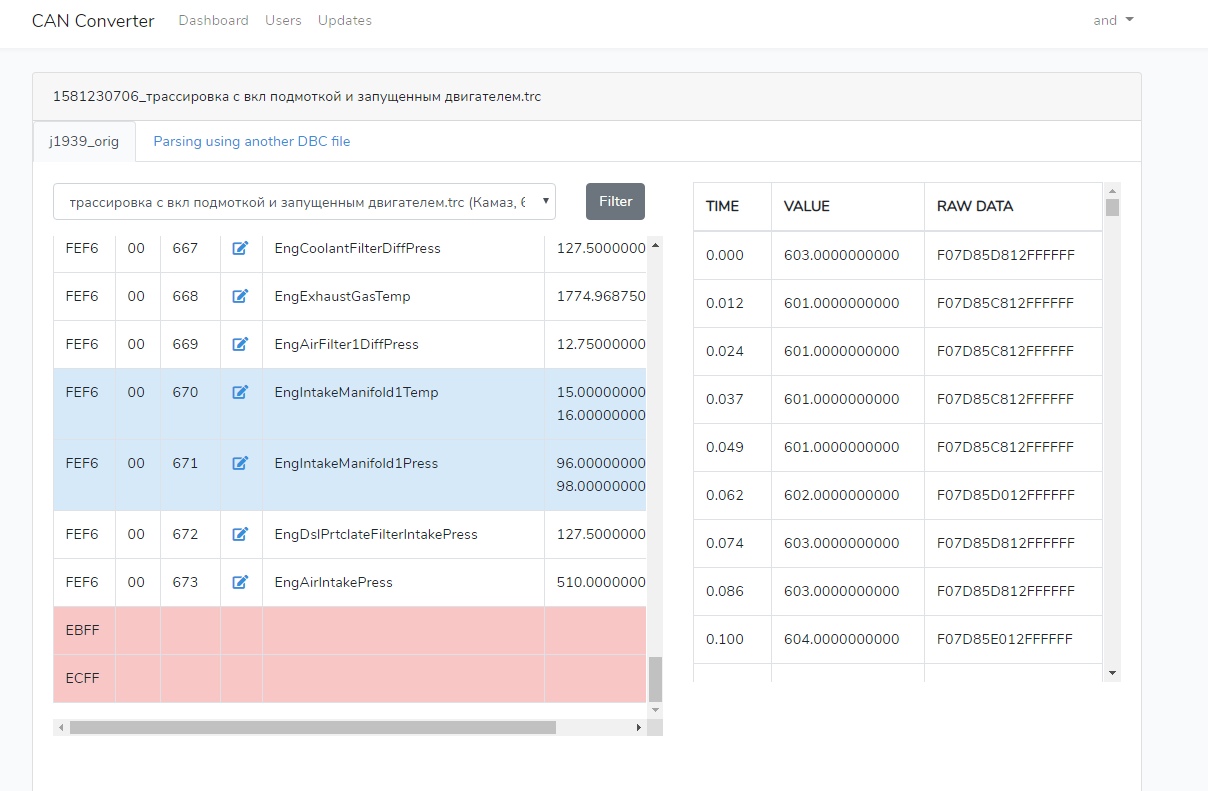

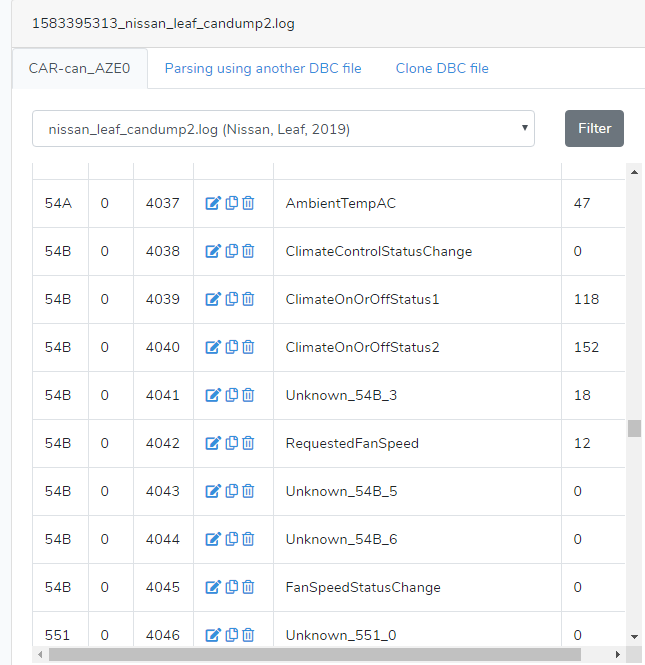

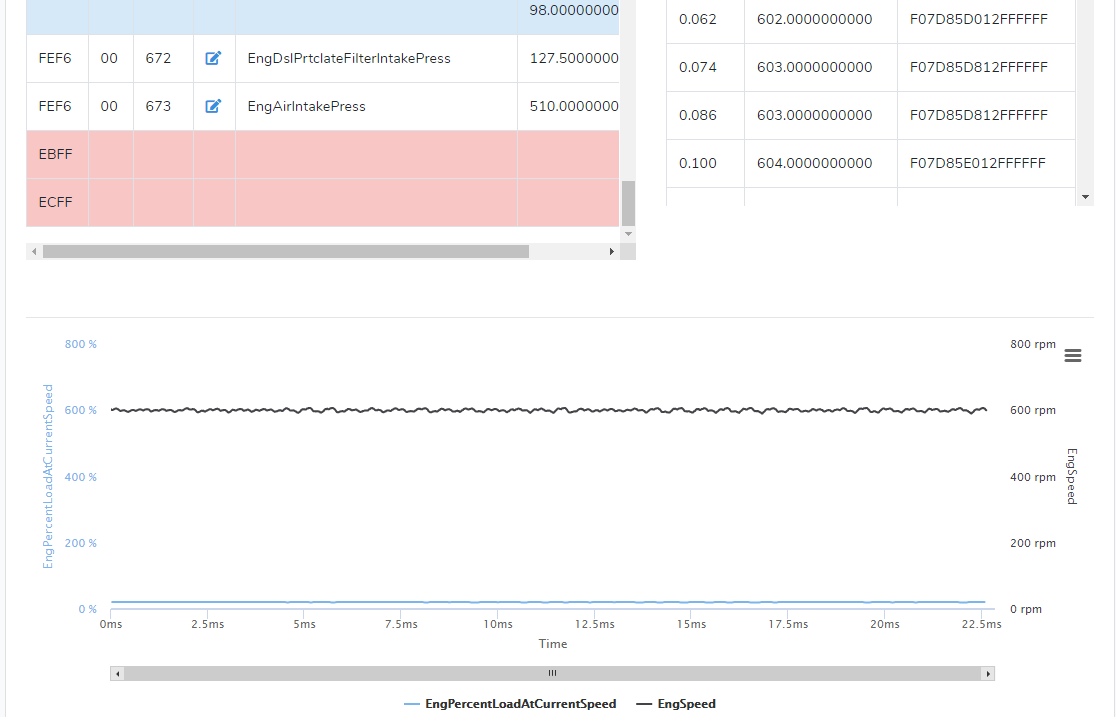

Here is a free web-service for can-log parsing and visualisation in form of readable parameters and plots. Parser is based on DBC-files, there are some default DBC-parsers including J1939 protocol. You can create your own parsers based on it with built-in editor (see pics) and upload your DBCs too. Further development includes collaboration of users and DBC-sharing between users for p2p CAN bus analysis.
link : can2sky.com
https://drive.google.com/open?id=1ik4rb … 2u_GT8W8kE
please, read the doc carefully for better understanding.
Not every canbus log file format is supported right now, but we will add another formats later.
Manufacturer of fuel level/consumption sensors, onboard weighing, temperature sensors, displays.... etc.
telegram channel (ENG) https://t.me/eurosens (RUS) https://t.me/mechatronicsby
