Calibration of big tanks

Тема: Calibration of big tanks

Fuel level sensors can be used for remote fuel volume monitoring of fuel tankers and fuel storages. Tank calibration by fuel portions is a big headache because you need to refill a large amount of fuel.

We've made 2 simple online calculators of tank calibration tables - for horizontal cylinder and for horizontal cylinder with ellyptic sides  (like fuel tanker).

for horizontal cylinder:
https://mechatronics.by/en/service/util … alibation/

for horizontal cylinder with ellyptic sides
https://mechatronics.by/en/service/util … l-storage/

As result, you will get a file with tank calibration table. It is for our Eurosens Dominator fuel level sensor, but you can easily convert it in any other format.

Remember that it is simplified method, accuracy will be affected because real tank shape is not "perfect".

Датчики расхода и уровня топлива, системы бортового взвешивания, контроля температуры и другое оборудование для телематики
Manufacturer of fuel level/consumption sensors, onboard weighing, temperature sensors, displays.... etc.
eurosenstelematics.com
telegram channel (ENG)  https://t.me/eurosens  (RUS) https://t.me/mechatronicsby
2

Calibration of big tanks

(01/12/2019 05:07:49 отредактировано thiago)

Re: Calibration of big tanks

And if tank have an inclination and sensor is not installed into the middle the table work ?

3

Calibration of big tanks

Re: Calibration of big tanks

thiago пишет:

And if tank have an inclination and sensor is not installed into the middle the table work ?

Not, of course.  smile

Датчики расхода и уровня топлива, системы бортового взвешивания, контроля температуры и другое оборудование для телематики
Manufacturer of fuel level/consumption sensors, onboard weighing, temperature sensors, displays.... etc.
eurosenstelematics.com
telegram channel (ENG)  https://t.me/eurosens  (RUS) https://t.me/mechatronicsby
4

Calibration of big tanks

(16/03/2020 16:00:57 отредактировано Frozenbrownie011)

Re: Calibration of big tanks

mechatronica пишет:

Fuel level sensors can be used for remote fuel volume monitoring of fuel tankers and fuel storages. Tank calibration by fuel portions is a big headache because you need to refill a large amount of fuel.

We've made 2 simple online calculators of tank calibration tables - for horizontal cylinder and for horizontal cylinder with ellyptic sides  (like fuel tanker).

for horizontal cylinder:
https://mechatronics.by/en/service/util … alibation/

for horizontal cylinder with ellyptic sides
https://mechatronics.by/en/service/util … l-storage/

As result, you will get a file with tank calibration table. It is for our Eurosens Dominator fuel level sensor, but you can easily convert it in any other format.

Remember that it is simplified method, accuracy will be mcdvoice survey affected because real tank shape is not "perfect".

Great idea man thanks keep it up all the time. am very happy to see your standard.

5

Calibration of big tanks

Re: Calibration of big tanks

Another calibration solution is using existing tank calibration table.

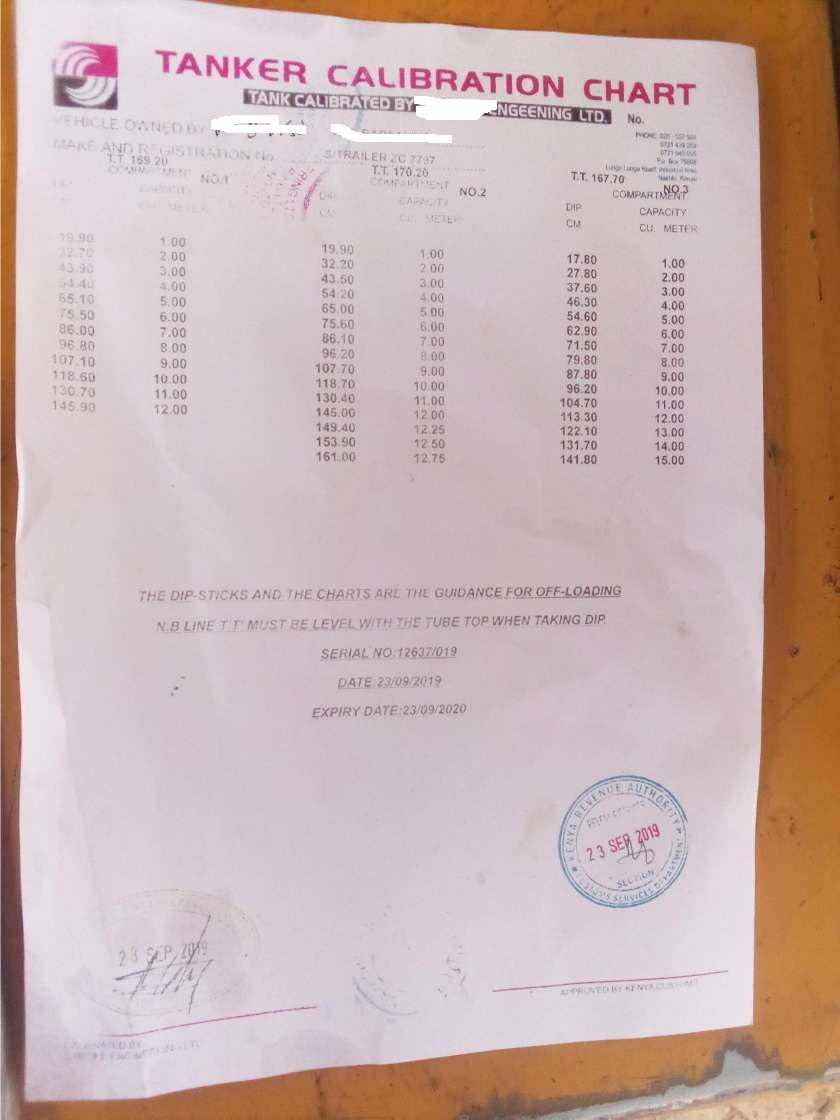

For example normally customer can provide tank calibration tables for tanker trucks. They have level-volume format. (see attachment)
