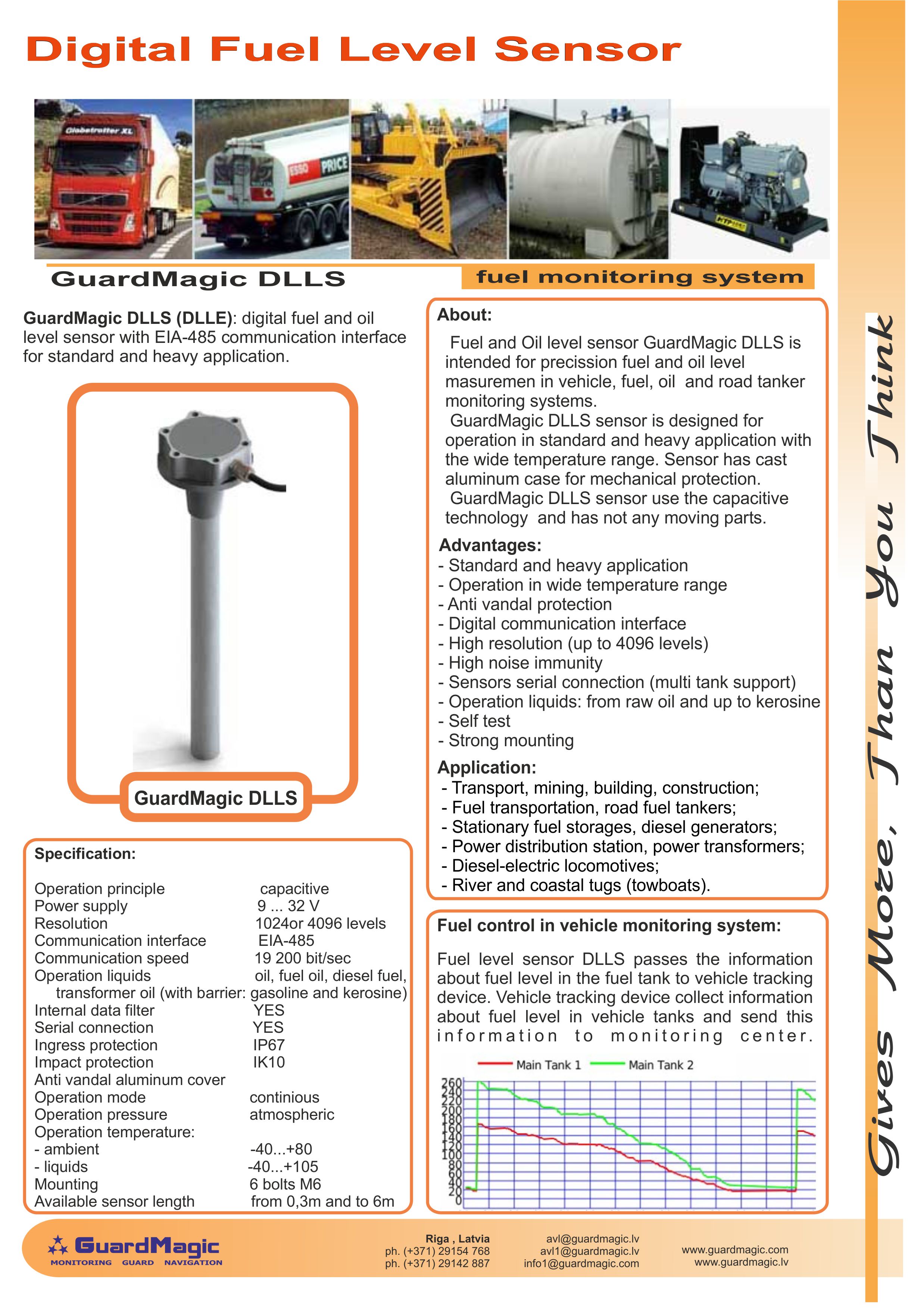

Robust Digital Fuel Level Sewnsor: GuardMagic DLLS1 series

GuardMagic DLLS: robust digital fuel level sensor for different application

GuardMagic DLLS1a:
Ruggedised Electronics Fuel and Oil Level Sensor with digital communication interface EIA-485 for standard and heavy application. Vehicle and stationary objects application. Resolution 1024 or 4096 levels. Available sensor length from 300mm and up to 3000mm.

Fuel and Oil level sensor GuardMagic DLLS1 is intended for precission fuel and oil level measurement in vehicle, fuel, oil and road tanker monitoring systems, fuel storages, diesel generators, power transformers etc.

GuardMagic DLLS1 sensor is designed for operation in standard and heavy application with the wide temperature range. Sensor has die cast aluminum case for mechanical protection.

GuardMagic DLLS1 sensor use the capacitive technology and has not any moving parts.

Advantages: - Standard and heavy application
- Operation in wide temperature range
- Anti vandal protection
- Digital communication interface
- High resolution (up to 4096 levels)
- High noise immunity
- Sensors serial connection (multi tank support)
- Operation liquids: from raw oil and up to kerosene
- Self testing
- Strong mounting.
