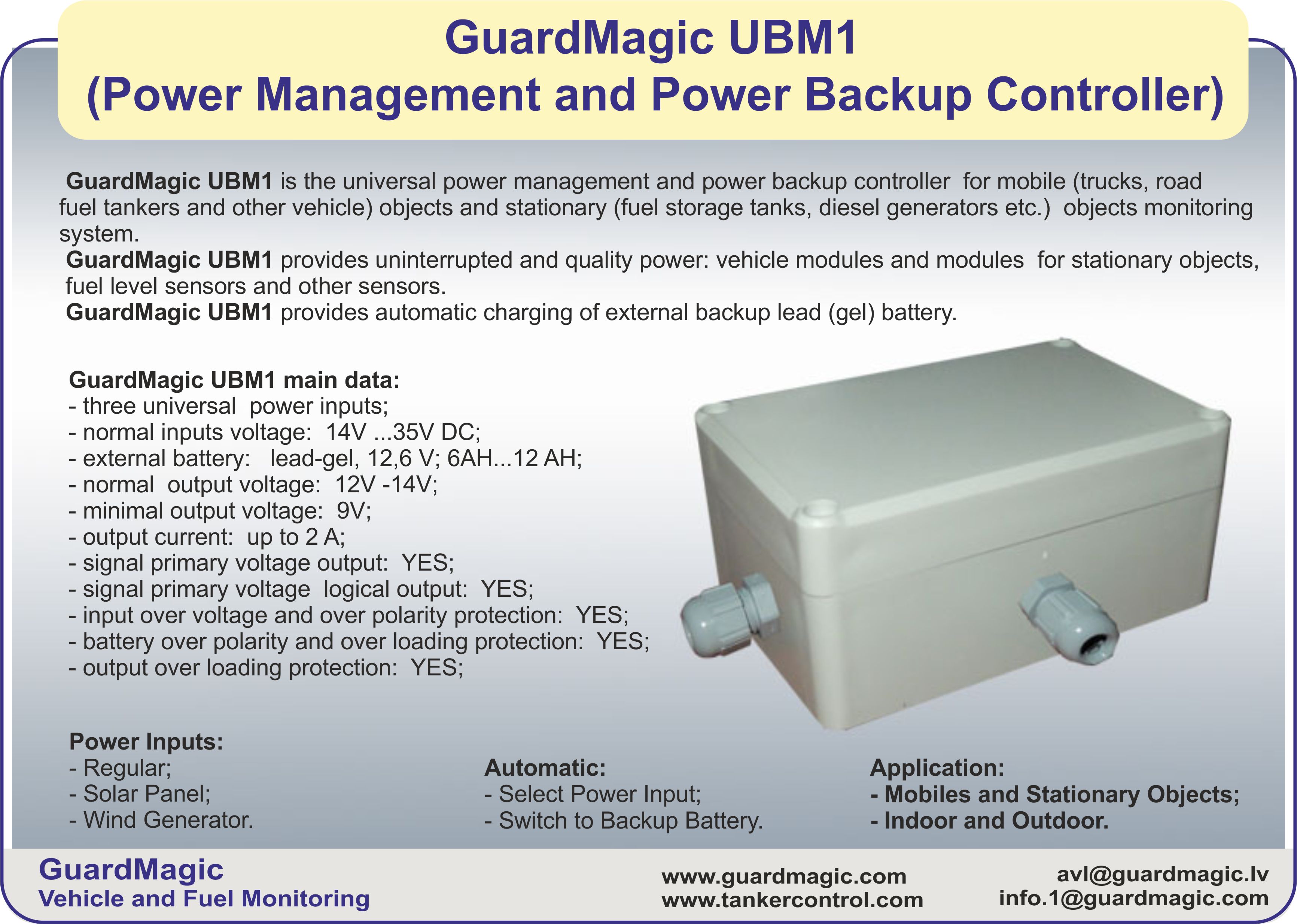

GuardMagic UBM1
Universal power management and power backup controller for mobile and stationary objects monitoring system.

GuardMagic UBM1 provides uninterrupted and quality power: vehicle and stationary objects monitoring modules (trackers), fuel level sensors and other sensors.

GuardMagic UBM1 provides power filtration and protection connected modules and sensors.

GuardMagic UBM1 provides charging of connected backup lead battery.

GuardMagic UBM1 provides automatic hitless switching primary power supply and backup battery.

To GuardMagic UBM1 can be connect three external power sources: regular power source, wind generator or solar panel.

GuardMagic UBM1 allows by very economical way embed power backup functionality to vehicle and fuel monitoring system, road fuel tanker monitoring system, fuel storage tank monitoring system, diesel generator monitoring system etc.

  • GuardMagic UBM1 Universal power management and power backup controller
www.guardmagic.com ;
www.tankercontrol.com;

Products for vehicle and fuel monitoring

Сайт GuardMagic

vinkel

+1
2Ответ от GuardMagic

GuardMagic UBM1 Universal power management and power backup controller

  • GuardMagic
  • Hardware Manufacturer
  • Неактивен
  • Откуда: Riga, Latvia
  • Зарегистрирован: 09/02/2011
  • Сообщений: 2,100
  • Карма: 127

Re: GuardMagic UBM1 Universal power management and power backup controller

GuardMagic UBM1 - main technical information:

- Input power voltage (DC) operation:  GND minus
                                       12V...35V

- Input power voltage (DC) battery charge: 14...35V

- Number of input power lines:  3 lines

- Maximum input current: 3 A

- Names of input power lines:   Regular
                                Solar Panel
                                Wind generator

- Output voltage:  12V... 14 V

- Maximum output current: 2A

- Connected backup battery: lead (gel)
                            12,6V
                            6 AH ... 12 AH

- Operation Mode: continuous;

- Operation Pressure: atmospheric;

- Operation Condition: indoor and outdoor;

- Enclosure Material: plastic;

- Dimension without galands and cables: 120 x78 x55,0 mm

- Operation Temperature:  -40...+80
